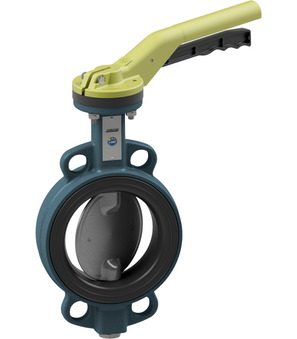

Butterfly valve with hand lever BUW6-040-DSD-L-A

Butterfly valve with hand lever BUW6-040-DSD-L-A

Butterfly valve with hand lever Series BUW6-DSD-L-A; ATEX II 2 G/D Ex h X; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; Pressure range 0...16bar; DN 40mm; Length 33mm

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 2.5 Kg
Short Itemnumber: BUW6040DSDLA

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.pl/web/image/product.template/116347/image_1920?unique=05fbd51

butterfly valve with hand lever series BUW6-DSD-L-A; ATEX II 2 G/D Ex h X; wafer type; DVGW-gas-approved; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+60°C; pressure range 0...16bar; DN 40mm; length 33mm

886,60 zł 886.6 PLN 886,60 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Design

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 40 mm
Length 33 mm
Design ATEX
Pressure range 0...16bar
DN 40 mm
Length 33 mm
Design ATEX
Butterfly valve with hand lever BUW6-040-DSD-L
BUW6-040-DSD-L x 1.0 Pcs
Butterfly valve with hand lever BUW6-040-DSD-L
Butterfly valve with hand lever Series BUW6-DSD-L; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 40mm; Length 33mm; Pressure range 0-16bar
