BUW4-400-DZTS-G

BUW4-400-DZTS-G

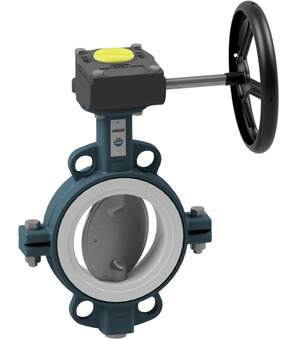

butterfly valve with manual gear box; series BUW4-DZTS-G; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ASTM A747 CB7Cu-1 PTFE-coated; shaft ASTM A747 CB7Cu-1; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 400mm; length 102mm

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW4400DZTSG
https://www.stasto.pl/web/image/product.template/231694/image_1920?unique=20b3250

butterfly valve with manual gear box; series BUW4-DZTS-G; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ASTM A747 CB7Cu-1 PTFE-coated; shaft ASTM A747 CB7Cu-1; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 400mm; length 102mm

36.095,80 zł 36095.8 PLN 36.095,80 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW4-400-DZTS-B x 1.0
    BUW4-400-DZTS-B
    butterfly valve with bare shaft series BUW4-DZTS-B; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ASTM A747 CB7Cu-1 PTFE-coated; shaft ASTM A747 CB7Cu-1; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 400mm; length 102mm
    Add to Cart
    GB02-12/4012-01
    GB02-12/4012-01 x 1.0
    GB02-12/4012-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 2000Nm; Flange ISO5211 F12; Diameter/Key 40/12mm
