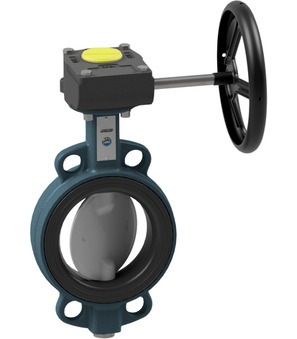

Butterfly valve with manual gear box BUW4-300-DSD-G

Butterfly valve with manual gear box BUW4-300-DSD-G

Butterfly valve with manual gear box Series BUW4-DSD-G-DVGW; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR ; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 300mm; Length 78mm; Pressure range 0...10bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 40.628 Kg
Short Itemnumber: BUW4300DSDG

Scope of delivery

butterfly valve with gear box
https://www.stasto.pl/web/image/product.template/90122/image_1920?unique=140292a

Butterfly valve with manual gear box Series BUW4-DSD-G-DVGW; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR ; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 300mm; Length 78mm; Pressure range 0...10bar

7.022,80 zł 7022.8 PLN 7.022,80 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 300 mm
Length 78 mm
Pressure range 0...10 bar
DN 300 mm
Length 78 mm
BUW4-300-DSD-B x 1.0 Pcs
Butterfly valve with bare shaft BUW4-300-DSD-B
Butterfly valve with bare shaft Series BUW6-DSD-B, BUW4-DSD-B; Wafer type; DVGW-gas-approved;Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 300mm; Length 78mm; Pressure range 0...10bar
GB02-10/22-02
GB02-10/22-02 x 1.0 Pcs
GB02-10/22-02
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F10; Female square 22mm
