BUW4-250-DSD-D22

Name: BUW4-250-DSD-D22
Brand: STASTO
SKU: BUW4-250-DSD-D22
Price: 8162.4 PLN
Availability: InStock

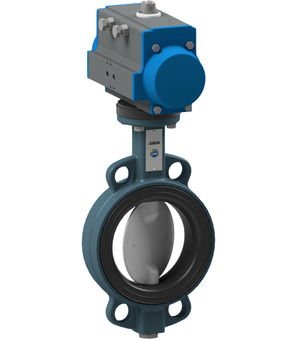

Butterfly valve with pneumatic actuator; Wafer type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+60°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Actuator PAD140

Intrastat No.: 84818085
Country of origin: Italy
Weight: 38.9 Kg
Short Itemnumber: BUW4250DSDD22

butterfly valve with pneumatic actuator; wafer type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+60°C; pressure range 0...10bar; DN 250mm; length 68mm; actuator PAD140

8.162,40 zł 8162.4 PLN 8.162,40 zł

This combination does not exist.

Availability:

Add to cart

No Specifications

Butterfly valve with bare shaft Series BUW6-DSD-B, BUW4-DSD-B; Wafer type; DVGW-gas-approved;Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 250mm; Length 68mm; Pressure range 0...10bar

Add to Cart

PAD140 x 1.0

Pneumatic actuator PAD140

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 451Nm

Add to Cart

APKTGB0052 x 1.0
