Butterfly valve with electrical actuator BUW4-200-DPE-0G2

Price:

5.224,60 zł
Butterfly valve with electrical actuator Series BUW2-DSE-0 Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Butterfly valve with electrical actuator Series BUW2-DSE-0
  6. BUW4-200-DPE-0G2
Butterfly valve with electrical actuator BUW4-200-DPE-0G2
  2. STASTO Store
  3. Butterfly valve with electrical actuator BUW4-200-DPE-0G2
Butterfly valve with electrical actuator BUW2-200-DSE-0T2
Butterfly valve with electrical actuator BUW2-200-DSE-0T2
5.722,20 zł
5.722,20 zł
Butterfly valve with electrical actuator BUW4-200-DSE-0G2
Butterfly valve with electrical actuator BUW4-200-DSE-0G2
6.002,90 zł
6.002,90 zł

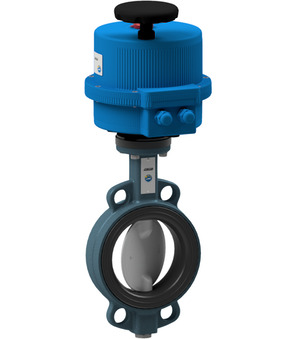

Butterfly valve with electrical actuator BUW4-200-DPE-0G2

butterfly valve with electrical actuator series BUW4-DPE-02; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc zinc plated ductile iron EN-GJS-400-15; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; pressure range 0...10bar; DN 200mm; nominal flange pressure PN10/16/ANSI150; length 60mm; actuator VB190-H; operating time 27s; voltage 100-240VAC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 19.91 Kg
Short Itemnumber:BUW4200DPE0G2
https://www.stasto.pl/web/image/product.template/224947/image_1920?unique=b9bbba7

butterfly valve with electrical actuator series BUW4-DPE-02; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc zinc plated ductile iron EN-GJS-400-15; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; pressure range 0...10bar; DN 200mm; nominal flange pressure PN10/16/ANSI150; length 60mm; actuator VB190-H; operating time 27s; voltage 100-240VAC

5.224,60 zł 5224.6 PLN 5.224,60 zł

cena na zapytanie

  • DN
  • Length
  • Voltage
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
DN 200 mm
Length 60 mm
Electrical key figures
Voltage 100-240VAC
characteristics
Actuator VB110H
Operating time 27 s
BUW2-200-DPE-B x 1.0
Butterfly valve with bare shaft BUW2-200-DPE-B
Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Zinc plated ductile iron EN-GJS-400-15; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/ANSI150
Add to Cart
Electrical actuator VB190-H
VB190-H x 1.0
Electrical actuator VB190-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
Add to Cart
dimension
DN 200 mm
Length 60 mm
Electrical key figures
Voltage 100-240VAC
characteristics
Actuator VB110H
Operating time 27 s
BUW2-200-DPE-B x 1.0
Butterfly valve with bare shaft BUW2-200-DPE-B
Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Zinc plated ductile iron EN-GJS-400-15; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/ANSI150
Add to Cart
Electrical actuator VB190-H
VB190-H x 1.0
Electrical actuator VB190-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
Add to Cart
