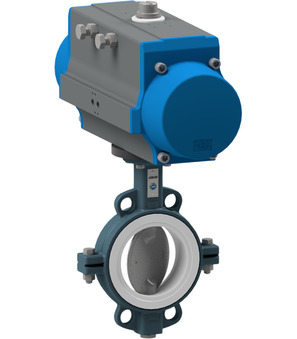

BUW4-100-DSTS-D22-ABS54-C001-03-C002-31-6

BUW4-100-DSTS-D22-ABS54-C001-03-C002-31-6

BUW4-100-DSTS-D22
butterfly valve with pneumatic actuator series BUW4-DSTS-D22; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAD100
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 12.91 Kg
Short Itemnumber: BUW4100DSTSD22ABS54C00103C002316
https://www.stasto.pl/web/image/product.template/237632/image_1920?unique=5dea311

BUW4-100-DSTS-D22
butterfly valve with pneumatic actuator series BUW4-DSTS-D22; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAD100
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

6.376,90 zł 6376.9 PLN 6.376,90 zł

cena na zapytanie

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 100 mm
Length 52 mm
Voltage 24VDC / 48V/50-60Hz
Design Standard
All specifications (5)
Documents
Data sheets, drawings and CAD files
DN 100 mm
Length 52 mm
Voltage 24VDC / 48V/50-60Hz
Design Standard
Brand STASTO

BUW4-100-DSTS-D22-ABS54-C001-03-C002-31-6

Documents

10 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

3

Declarations of Conformity

3

CAD / 3D

4
Danish / Dansk
ZIP

Data Sheets

2

CAD / 3D

4
German / Deutsch
ZIP

Data Sheets

3

Declarations of Conformity

3

CAD / 3D

4
Greek / Ελληνικά
ZIP

Data Sheets

2

CAD / 3D

4
English
ZIP

Data Sheets

3

Declarations of Conformity

3

CAD / 3D

4
Spanish / Español
ZIP

Data Sheets

2

CAD / 3D

4
Finnish / Suomi
ZIP

Data Sheets

2

CAD / 3D

4
French / Français
ZIP

Data Sheets

2

CAD / 3D

4
Croatian / hrvatski jezik
ZIP

Data Sheets

2

CAD / 3D

4
Hungarian / Magyar
ZIP

Data Sheets

3

Declarations of Conformity

3

CAD / 3D

4
Italian / Italiano
ZIP

Data Sheets

2

CAD / 3D

4
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

2

CAD / 3D

4
Dutch / Nederlands
ZIP

Data Sheets

2

CAD / 3D

4
Polish / Język polski
ZIP

Data Sheets

3

Declarations of Conformity

3

CAD / 3D

4
Romanian / română
ZIP

Data Sheets

2

CAD / 3D

4
Slovenian / slovenščina
ZIP

Data Sheets

3

Declarations of Conformity

3

CAD / 3D

4
Serbian (Latin) / srpski
ZIP

Data Sheets

3

Declarations of Conformity

3

CAD / 3D

4
Swedish / Svenska
ZIP

Data Sheets

2

CAD / 3D

4
BUW4-100-DSTS-D22 x 1.0 Pcs
Butterfly valve with pneumatic actuator BUW4-100-DSTS-D22
Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAD100
Mounted pilot valve ABS54
ABS54 x 1.0 Pcs
Mounted pilot valve ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
C001-03 x 1.0 Pcs
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
C002-31-6 x 1.0 Pcs
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
