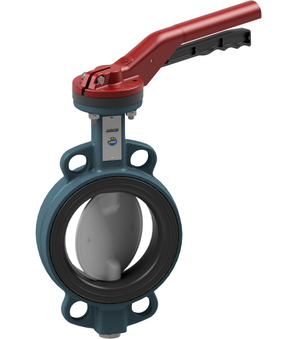

Butterfly valve with hand lever BUW1-080-DSE-L

Butterfly valve with hand lever BUW1-080-DSE-L

Butterfly valve with hand lever Series BUW1-DSE-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN6; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.35 Kg
Short Itemnumber: BUW1080DSEL

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.pl/web/image/product.template/146533/image_1920?unique=75688a0

butterfly valve with hand lever series BUW1-DSE-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN6; medium temperature -10...+130°C; pressure range 0...6bar; DN 80mm; length 46mm

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...6bar
DN 80 mm
Length 46 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...6bar
DN 80 mm
Length 46 mm

BUW1-080-DSE-L
