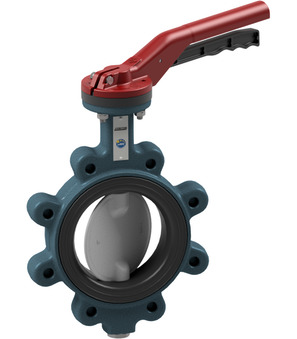

BULY-150-DSN-L-02

Name: BULY-150-DSN-L-02
Brand: STASTO
SKU: BULY-150-DSN-L-02
Price: 2763.6 PLN
Availability: InStock

Butterfly valve with hand lever Series BULY-DSN-L-02; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULY150DSNL02

butterfly valve with hand lever series BULY-DSN-L-02; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated RAL5009 C5-High according to EN-ISO 12944; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 150mm; length 56mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC; Type plate in stainless steel; Stainless steel screws

2.763,60 zł 2763.6 PLN 2.763,60 zł

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BULY-150-DSN-B-02 x 1.0

BULY-150-DSN-B-02

Butterfly valve with bare shaft Series BULY-DSN-B-02; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws
