BULY-150-DSN-G-3C02

Name: BULY-150-DSN-G-3C02
Brand: STASTO
SKU: BULY-150-DSN-G-3C02
Price: 2523.0 PLN
Availability: InStock

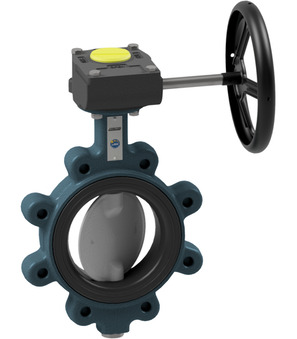

Butterfly valve with manual gear box Series BULY-DSN-G-3C02; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure ANSI150; Flange thread UNC; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 150mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 13.464 Kg
Short Itemnumber: BULY150DSNG3C02

butterfly valve with manual gear box series BULY-DSN-G-3C02; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure ANSI150; flange thread UNC; medium temperature -10...+100°C; pressure range 0...16bar; DN 150mm; length 56mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

2.523,00 zł 2523.0 PLN 2.523,00 zł

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BULY-150-DSN-B-3C02 x 1.0

BULY-150-DSN-B-3C02

Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
