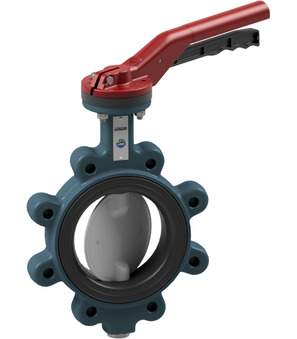

Butterfly valve with hand lever BULY-100-DSE-L-01

Butterfly valve with hand lever BULY-100-DSE-L-01

Butterfly valve with hand lever Series BULY-L-01; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure ANSI150; Flange thread UNC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.8 Kg
Short Itemnumber: BULY100DSEL01

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.pl/web/image/product.template/167860/image_1920?unique=fcc32fd

butterfly valve with hand lever series BULY-L-01; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 100mm; length 52mm; pressure range 0...16bar; nominal flange pressure ANSI150; flange thread UNC

1.100,40 zł 1100.4 PLN 1.100,40 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Flange
  • Pressure range
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 100 mm
Length 52 mm
Flange ANSI150
All specifications (5)
Pressure range 0...16 bar
DN 100 mm
Length 52 mm
Flange ANSI150
Brand STASTO
BULY-100-DSE-B-01 x 1.0 Pcs
BULY-100-DSE-B-01
Butterfly valve with bare shaft Series BUL-B-01; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
