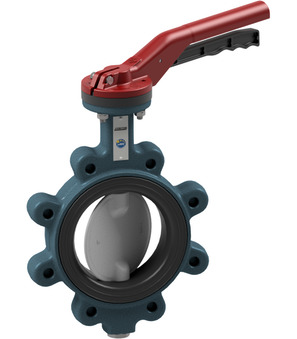

Butterfly valve with hand lever BULY-100-DNE-L-3C02

Butterfly valve with hand lever BULY-100-DNE-L-3C02

Butterfly valve with hand lever Series BULY-L-3C02; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc Aluminium-bronze; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULY100DNEL3C02
https://www.stasto.pl/web/image/product.template/236760/image_1920?unique=aac2621

butterfly valve with hand lever series BULY-L-3C02; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated RAL5009 C5-High according to EN-ISO 12944; disc aluminium-bronze; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 100mm; length 52mm; pressure range 0...16bar; nominal flange pressure ANSI150; flange thread UNC; Type plate in stainless steel; Stainless steel screws; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

2.461,40 zł 2461.4 PLN 2.461,40 zł

cena na zapytanie

  • DN
  • Length
  • Flange
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 100 mm
Length 52 mm
Flange ANSI150
pressure
Pressure range 0...16 bar
BULY-100-DNE-B-3C02 x 1.0
BULY-100-DNE-B-3C02
Butterfly valve with bare shaft Series BUL-B-3C02; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc Aluminium-bronze; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
Add to Cart
HLBU-040100-A
HLBU-040100-A x 1.0
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
