BULY-100-CSN-L

BULY-100-CSN-L

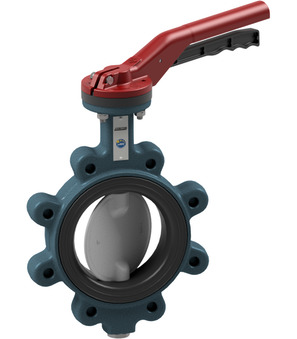

Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 100mm; Length 52mm; Pressure range 0-16bar; Flange ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.85 Kg
Short Itemnumber: BULY100CSNL
https://www.stasto.pl/web/image/product.template/159086/image_1920?unique=24fee4a

butterfly valve with hand lever; lug type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 100mm; length 52mm; pressure range 0-16bar; flange ANSI150

2.253,70 zł 2253.7 PLN 2.253,70 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULY-100-CSN-B x 1.0
    BULY-100-CSN-B
    Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Nominal flange pressure ANSI150
    Add to Cart
    HLBU-040100-A
    HLBU-040100-A x 1.0
    HLBU-040100-A
    Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
