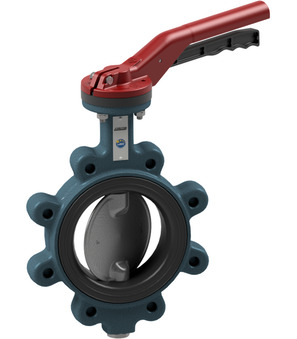

Butterfly valve with hand lever BULY-080-DSV-L

Butterfly valve with hand lever BULY-080-DSV-L

Butterfly valve with hand lever Series BUL-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Nominal flange pressure ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.45 Kg
Short Itemnumber: BULY080DSVL

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.pl/web/image/product.template/182745/image_1920?unique=3c279ff

Butterfly valve with hand lever Series BUL-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner FKM; Medium temperature -10...+200°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Nominal flange pressure ANSI150

1.619,20 zł 1619.2 PLN 1.619,20 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Flange
  • Design
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 80 mm
Length 46 mm
Flange ANSI150
All specifications (5)
Pressure range 0...16 bar
DN 80 mm
Length 46 mm
Flange ANSI150
Design ATEX
BULY-080-DSV-B x 1.0 Pcs
Butterfly valve with bare shaft BULY-080-DSV-B
Butterfly valve with bare shaft Series BUL-DSV-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 80mm; Length 46mm; Pressure range 0...16bar; Nominal flange pressure ANSI150
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
