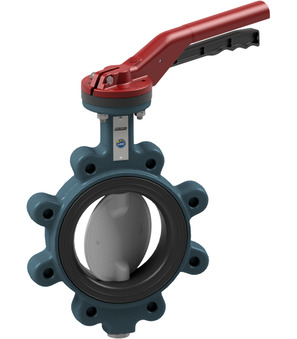

Butterfly valve with hand lever BULY-050-SSES-X-A3G01

Butterfly valve with hand lever BULY-050-SSES-X-A3G01

Butterfly valve with hand lever Series BULY-SSES-X-A3G01; ATEX Ex II 2GD c TX; Lug type; Length According to EN558−1R20; Body, Disc And Shaft 1.4408; Liner EPDM; Medium temperature -35...+130°C; DN 50mm; Length 43mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Hand lever Stainless steel; Notch impact test; Type plate With Imperial units; Incl. Inspection certificate API 598 For pressure and tightness; Incl. Inspection certificate EN-10204-3.1 For material

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.1 Kg
Short Itemnumber: BULY050SSESXA3G01

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.pl/web/image/product.template/213696/image_1920?unique=f96ddcc

butterfly valve with hand lever series BULY-SSES-X-A3G01; ATEX Ex II 2GD c TX; lug type; length according to EN558−1R20; body, disc and shaft AISI 316; liner EPDM; medium temperature -35...+130°C; DN 50mm; length 43mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC; hand lever stainless steel; notch impact test; type plate with Imperial units; incl. inspection certificate API 598 for pressure and tightness; incl. inspection certificate EN-10204-3.1 for material

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length
  • Flange
  • Design
  • Pressure range
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 50 mm
Length 43 mm
Flange ANSI150
All specifications (6)
Pressure range 0...16 bar
DN 50 mm
Length 43 mm
Flange ANSI150
Design ATEX
Brand STASTO
BULY-050-SSES-B-A3G01 x 1.0 Pcs
Butterfly valve with bare shaft BULY-050-SSES-B-A3G01
Butterfly valve with bare shaft Series BULY-SSES-B-A3G01; ATEX Ex II 2GD c TX; Lug type; Length According to EN558−1R20; Body, Disc And Shaft 1.4408; Liner EPDM; Medium temperature -35...+130°C; DN 50mm; Length 43mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Notch impact test; Type plate With Imperial units; Incl. Inspection certificate API 598 For pressure and tightness; Incl. Inspection certificate EN-10204-3.1 For material
HL-BU-040100-S
HL-BU-040100-S x 1.0 Pcs
HL-BU-040100-S
Hand lever; Material Stainless steel; Suitable for Series BUW7, BUW6, BUW2, BUW4, BULG And BULC; DN 40-100mm
