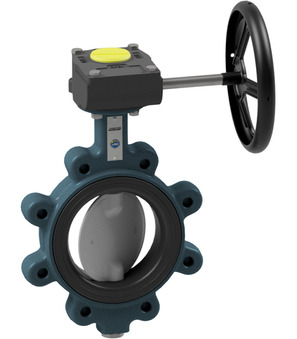

BULY-040-DSN-G-01

BULY-040-DSN-G-01

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 40mm; Length 33mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC

Intrastat No.: 84818085
Country of origin: Netherlands
Weight: 5.224 Kg
Short Itemnumber: BULY040DSNG01
https://www.stasto.pl/web/image/product.template/231482/image_1920?unique=1abc772

butterfly valve with manual gear box; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 40mm; length 33mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC

1.505,70 zł 1505.7 PLN 1.505,70 zł

cena na zapytanie

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 40 mm
Length 33 mm
pressure
Pressure range 0...16 bar
BULY-040-DSN-B-01 x 1.0
BULY-040-DSN-B-01
butterfly valve with bare shaft; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 40mm; length 33mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC
Add to Cart
GB02-07/11-01
GB02-07/11-01 x 1.0
GB02-07/11-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 150Nm; Flange ISO5211 F07; Female square 11mm
Add to Cart
