BULY-040-DSE-C51-3C01

Name: BULY-040-DSE-C51-3C01
Brand: STASTO
SKU: BULY-040-DSE-C51-3C01

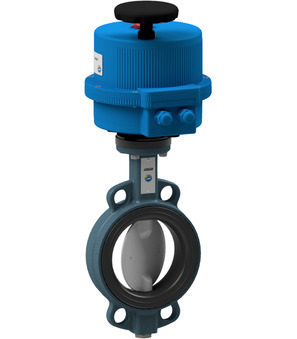

Butterfly valve with electric control actuator Series BULY-DSE-C5; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure ANSI150; Medium temperature -10...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Pressure range 0...16bar; DN 40mm; Length 33mm; Flange ANSI150; Flange thread UNC; Actuator Metal; Operating time 8s; Voltage 24VDC/AC; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Protection class IP68

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULY040DSEC513C01

Butterfly valve with electric control actuator series BULY-DSE-C5; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure ANSI150; medium temperature -10...+130°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; pressure range 0...16bar; DN 40mm; length 33mm; flange ANSI150; flange thread UNC; actuator metal; operating time 8s; voltage 24VDC/AC; 2 potential-free contacts for end position feedback; incl. manual emergency override; incl. positioner 4-20mA/0-10V; protection class IP68

On request

DN
- 40 mm
Length
- 33 mm
Voltage
- 100-240VAC
Actuator
- VB060H
Operating time
- 9 s

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	40 mm
Length	33 mm
Electrical key figures
Voltage	100-240VAC
characteristics
Actuator	VB060H
Operating time	9 s

BULY-040-DSE-B-3C01 x 1.0

Butterfly valve with bare shaft BULY-040-DSE-B-3C01

Butterfly valve with bare shaft Series BUL-B-3C01; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 40mm; Length 33mm; Pressure range 0...16bar; Nominal flange pressure ANSI150; Flange thread UNC; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Add to Cart

VB030M-RE8-Q11 x 1.0

VB030M-RE8-Q11

Electrical actuator; Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-star 11mm; Voltage 24VAC/DC; Protection class IP68
