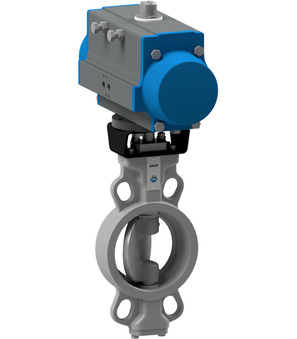

Butterfly valve with pneumatic actuator; Lug type; Double eccentric; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 100mm; Length 52mm; Pressure range 0...25bar; Nominal flange pressure PN25; Actuator PAS1605-H
Country of origin: Italy
Weight: 38.17 Kg
Short Itemnumber: BULV100CSISS42
butterfly valve with pneumatic actuator; lug type; double eccentric; length according to EN558−1R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 100mm; length 52mm; pressure range 0...25bar; nominal flange pressure PN25; actuator PAS1605-H
Technical specifications
| Pressure range | 0...25 bar |
|---|---|
| DN | 100 mm |
| Length | 52 mm |
| Flange | PN25 |
| Pressure range | 0...25 bar |
| DN | 100 mm |
| Length | 52 mm |
| Flange | PN25 |
BULV-100-CSIS-S42
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · BULV100CSISS42
CAD-STEP 14,3 MB Updated 04/10/2026
