BULU-200-DSE-G

BULU-200-DSE-G

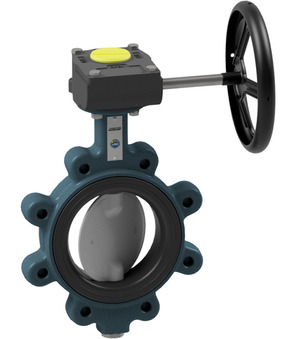

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0-10bar; Flange ANSI150

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 10.828 Kg
Short Itemnumber: BULU200DSEG
https://www.stasto.pl/web/image/product.template/152814/image_1920?unique=b82de6b

butterfly valve with manual gear box; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 200mm; length 60mm; pressure range 0-10bar; flange ANSI150

3.747,90 zł 3747.9 PLN 3.747,90 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-10bar
Brand STASTO
Pressure range 0-10bar
Brand STASTO
BULU-200-DSE-B x 1.0 Pcs
BULU-200-DSE-B
Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Nominal flange pressure ANSI150
GB02-10/17-01
GB02-10/17-01 x 1.0 Pcs
GB02-10/17-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 500Nm; Flange ISO5211 F10; Female square 17mm
