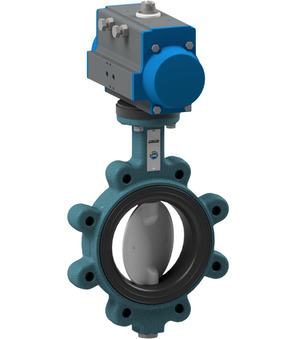

Butterfly valve with pneumatic actuator BULI-150-DSC-D32

Butterfly valve with pneumatic actuator BULI-150-DSC-D32

Butterfly valve with pneumatic actuator Series BULI-D, BULB-D; Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 150mm; Length 56mm; Flange PN10/16; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 15.54 Kg
Short Itemnumber: BULI150DSCD32
https://www.stasto.pl/web/image/product.template/146586/image_1920?unique=b9bbba7

butterfly valve with pneumatic actuator series BULI-D, BULB-D; lug type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 150mm; length 56mm; flange PN10/16; actuator PAD085

3.504,20 zł 3504.2 PLN 3.504,20 zł

cena na zapytanie

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 150 mm
Length 56 mm
Flange PN10/16
characteristics
Actuator PAD085

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Declarations of Conformity
1
Declaration of conformity_Butterfly valve with pneumatic actuator Series BULI-D, BULB-D_EN.pdf
Download

ZIP
Prohlášení o shodě
1
Prohlášení o shodě_uzavírací klapka s otočným pneumatickým pohonem série BULI-D, BULB-D_CS.pdf
Download

ZIP
Konformitätserklärungen
1
Konformitätserklärung_Absperrklappe mit Druckluftdrehantrieb Serie BULI-D, BULB-D_DE.pdf
Download

ZIP
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BULI-D, BULB-D_HU.pdf
Download

ZIP
Deklaracje zgodności
1
Deklaracja zgodności_przepustnica z napędem pneumatycznym Seria BULI-D, BULB-D_PL.pdf
Download

ZIP
Izjave o skladnosti
1
Izjava o skladnosti_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BULI-D, BULB-D_SL.pdf
Download

ZIP
Declarations of Conformity
1
Deklaracija o usklađenosti_leptir ventil sa pneumatskim aktuatorom serije BULI-D, BULB-D_SRLATIN.pdf
Download
BULI-150-DSC-B x 1.0
Butterfly valve with bare shaft BULI-150-DSC-B
Butterfly valve with bare shaft Series BULI-B; Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Medium temperature -10...+100°C; Pressure range 0...6bar; Nominal flange pressure PN10/16; DN 150mm; Length 56mm
Add to Cart
Pneumatic actuator PAD085
PAD085 x 1.0
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
