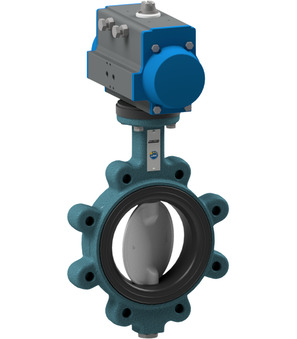

Butterfly valve with pneumatic actuator BULI-050-DSC-D32

Butterfly valve with pneumatic actuator BULI-050-DSC-D32

Butterfly valve with pneumatic actuator Series BULI-D, BULB-D; Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 50mm; Length 43mm; Flange PN10/16; Actuator PAD063

Intrastat No.: 84818085
Country of origin: Italy
Weight: 5.5 Kg
Short Itemnumber: BULI050DSCD32
https://www.stasto.pl/web/image/product.template/131295/image_1920?unique=bcfc56d

butterfly valve with pneumatic actuator series BULI-D, BULB-D; lug type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 50mm; length 43mm; flange PN10/16; actuator PAD063

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...6bar
DN 50 mm
Length 43 mm
Flange PN10/16
Documents
Data sheets, drawings and CAD files
Pressure range 0...6bar
DN 50 mm
Length 43 mm
Flange PN10/16

BULI-050-DSC-D32

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Declarations of Conformity

1
German / Deutsch
ZIP

Declarations of Conformity

1
English
ZIP

Declarations of Conformity

1
Hungarian / Magyar
ZIP

Declarations of Conformity

1
Polish / Język polski
ZIP

Declarations of Conformity

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Declarations of Conformity

1
BULI-050-DSC-B x 1.0 Pcs
Butterfly valve with bare shaft BULI-050-DSC-B
Butterfly valve with bare shaft Series BULI-B; Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Medium temperature -10...+100°C; Pressure range 0...6bar; Nominal flange pressure PN10/16; DN 50mm; Length 43mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
MFFALFUAL09733 x 1.0 Pcs
MFFALFUAL09733
Adapter For butterfly valve DN40-DN150; F07/F07
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4604
RI4604
Diameter
63 mm
RI4618
RI4618
Diameter
63 mm
RI4646
RI4646
Diameter
63 mm
