BULG-100-CSV-L

BULG-100-CSV-L

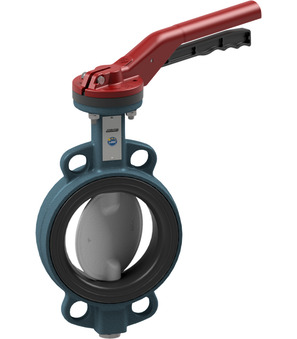

Butterfly valve with hand lever Series BULG-CSV-L; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure PN10/16

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.45 Kg
Short Itemnumber: BULG100CSVL
https://www.stasto.pl/web/image/product.template/149976/image_1920?unique=6ff5c46

butterfly valve with hand lever series BULG-CSV-L; lug type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; medium temperature -10...+200°C; DN 100mm; length 52mm; pressure range 0...16bar; nominal flange pressure PN10/16

3.086,60 zł 3086.6 PLN 3.086,60 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
Brand STASTO
Pressure range 0...16bar
Brand STASTO
BULG-100-CSV-B x 1.0 Pcs
BULG-100-CSV-B
Butterfly valve with bare shaft Series BULG-CSV-B; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure 10/16bar
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
