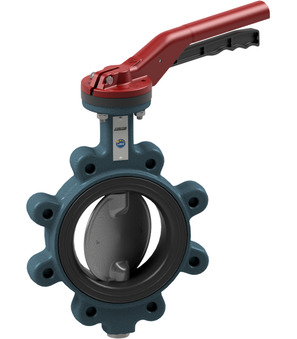

Butterfly valve with hand lever BULG-080-DSV-L

Butterfly valve with hand lever BULG-080-DSV-L

Butterfly valve with hand lever Series BULG-L, BULC-L, BULY-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 80mm; Length 46mm; Pressure range 0...16bar; Flange PN10/16

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.45 Kg
Short Itemnumber: BULG080DSVL

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.pl/web/image/product.template/110277/image_1920?unique=4df2fcd

butterfly valve with hand lever series BULG-L, BULC-L, BULY-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; medium temperature -10...+200°C; DN 80mm; length 46mm; pressure range 0...16bar; flange PN10/16

1.619,20 zł 1619.2 PLN 1.619,20 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Flange
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 80 mm
Length 46 mm
Flange PN10/16
Pressure range 0...16 bar
DN 80 mm
Length 46 mm
Flange PN10/16
BULG-080-DSV-B x 1.0 Pcs
Butterfly valve with bare shaft BULG-080-DSV-B
Butterfly valve with bare shaft Series BUL-DSV-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 80mm; Length 46mm; Pressure range 0...16bar; Nominal flange pressure 10/16
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
