BULG-080-DSV-L-A3D

Name: BULG-080-DSV-L-A3D
Brand: STASTO
SKU: BULG-080-DSV-L-A3D
Price: 1619.2 PLN
Availability: InStock

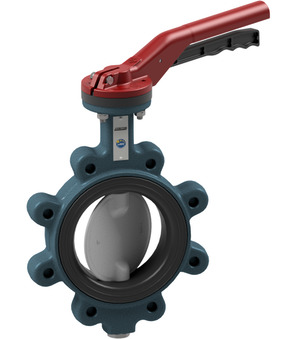

Butterfly valve with hand lever; Lug type; ATEX Ex II 2GD h X; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Flange PN10/16, Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Certificate TR CU; With valve pass And Verify Safety

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.15 Kg
Short Itemnumber: BULG080DSVLA3D

butterfly valve with hand lever; lug type; ATEX Ex II 2GD h X; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; medium temperature -10...+200°C; DN 80mm; length 46mm; pressure range 0…16bar; flange PN10/16, incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; certificate TR CU; with valve pass and Verify safety

1.619,20 zł 1619.2 PLN 1.619,20 zł

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BULG-080-DSV-B-A3D x 1.0

Butterfly valve with bare shaft BULG-080-DSV-B-A3D

Butterfly valve with bare shaft Series BULG-DSV-B-A3D, BULC-DSV-B-A3D, BULY-DSV-B-A3D; ATEX II GD Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Certificate TR CU; With valve pass And Verify Safety; DN 80mm; Length 46mm; Pressure range 0...16bar; Nominal flange pressure PN10/16
