BULG-080-DSN-D22

Name: BULG-080-DSN-D22
Brand: STASTO
SKU: BULG-080-DSN-D22
Price: 2229.0 PLN
Availability: InStock

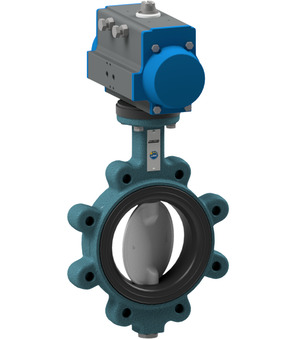

Butterfly valve with pneumatic actuator; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Flange PN10/16; Actuator PAD075

Intrastat No.: 84818085
Country of origin: Italy
Weight: 9.03 Kg
Short Itemnumber: BULG080DSND22

butterfly valve with pneumatic actuator; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 80mm; length 46mm; flange PN10/16; actuator PAD075

2.229,00 zł 2229.0 PLN 2.229,00 zł

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BULG-080-DSN-B x 1.0

Butterfly valve with bare shaft BULG-080-DSN-B

Butterfly valve with bare shaft Series BULA-B, BULG-B, BULC-B, BULY-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Flange PN10/16

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

MFFALFUAL09733 x 1.0
