Butterfly valve with hand lever BULG-065-DSX-L

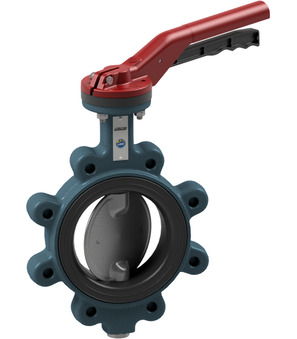

Butterfly valve with hand lever BULG-065-DSX-L

butterfly valve with hand lever series BULG-L, BULC-L; lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM-peroxide cross-linked; medium temperature -10...+150°C; DN 65mm; length 46mm; pressure range 0-16bar; flange PN10/16

Absperrklappe mit Handhebel Serie BULG-L, BULC-L
Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULG065DSXL

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.pl/web/image/product.template/177559/image_1920?unique=23c28d6

butterfly valve with hand lever series BULG-L, BULC-L; lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM-peroxide cross-linked; medium temperature -10...+150°C; DN 65mm; length 46mm; pressure range 0-16bar; flange PN10/16

955,70 zł 955.7 PLN 955,70 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Flange
  • Pressure range
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 50 mm
Length 43 mm
Flange PN10/16
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 50 mm
Length 43 mm
Flange PN10/16
Brand STASTO

BULG-065-DSX-L

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Swedish / Svenska
ZIP

Data Sheets

1
BULG-065-DSX-B x 1.0 Pcs
Butterfly valve with bare shaft BULG-065-DSX-B
butterfly valve with bare shaft series BUL-DSX-B, lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM-peroxide cross-linked; medium temperature -10...+150°C; DN 65mm; length 46mm; pressure range 0…16bar; nominal flange pressure PN10/16
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
