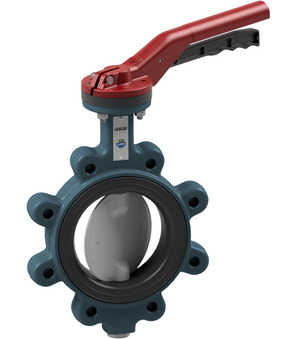

BULG-065-DSV-L

BULG-065-DSV-L

Butterfly valve with hand lever; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 65mm; Length 46mm; Pressure range 0...16bar; Flange PN10/16

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.25 Kg
Short Itemnumber: BULG065DSVL
https://www.stasto.pl/web/image/product.template/159591/image_1920?unique=d9024cc

butterfly valve with hand lever; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; medium temperature -10...+200°C; DN 65mm; length 46mm; pressure range 0...16bar; flange PN10/16

1.358,70 zł 1358.7 PLN 1.358,70 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULG-065-DSV-B x 1.0
    Butterfly valve with bare shaft BULG-065-DSV-B
    Butterfly valve with bare shaft Series BUL-DSV-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 65mm; Length 46mm; Pressure range 0...16bar; Nominal flange pressure 10/16
    Add to Cart
    HLBU-040100-A
    HLBU-040100-A x 1.0
    HLBU-040100-A
    Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
