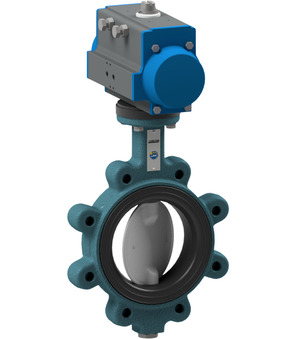

BULG-065-DSV-D22

Name: BULG-065-DSV-D22
Brand: STASTO
SKU: BULG-065-DSV-D22
Price: 2348.7 PLN
Availability: InStock

BULG-065-DSV-B
butterfly valve with bare shaft series BUL-DSV-B; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; medium temperature -10...+200°C; DN 65mm; length 46mm; pressure range 0...16bar; nominal flange pressure 10/16
PAD063
pneumatic actuator series PAD; ATEX II 2 G/D c T6; double acting; rotation angle 90°; according to ISO 5211/NAMUR; operating pressure range max. 8bar; diameter 63mm; flange ISO5211 F05/F07; female square 14mm; torque at 5,5bar 36Nm
MFFALFUAL09733
adapter for butterfly valve DN40-DN150; F07/F07
VK1411
square adapter series VK; 14X11; length 16mm; material Stahl

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.7 Kg
Short Itemnumber: BULG065DSVD22

2.348,70 zł 2348.7 PLN 2.348,70 zł

DN
- 65 mm
Length
- 46 mm
Flange
- PN10/16
Design
- ATEX
Pressure range
- 0...10 bar
Actuator
- PAD063

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	65 mm
Length	46 mm
Flange	PN10/16
design
Design	ATEX
pressure
Pressure range	0...10 bar
characteristics
Actuator	PAD063

BULG-065-DSV-B x 1.0

Butterfly valve with bare shaft BULG-065-DSV-B

Butterfly valve with bare shaft Series BUL-DSV-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 65mm; Length 46mm; Pressure range 0...16bar; Nominal flange pressure 10/16

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

MFFALFUAL09733 x 1.0
