BULC-300-DSN-G

BULC-300-DSN-G

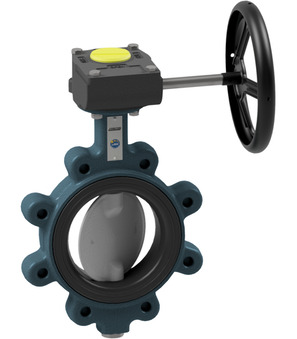

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 300mm; Length 78mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 48.708 Kg
Short Itemnumber: BULC300DSNG
https://www.stasto.pl/web/image/product.template/156004/image_1920?unique=fcc32fd

butterfly valve with manual gear box; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10; medium temperature -10...+100°C; pressure range 0...10bar; DN 300mm; length 78mm

7.363,80 zł 7363.8 PLN 7.363,80 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0...10bar
Brand STASTO

BULC-300-DSN-G

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BULC-300-DSN-B x 1.0 Pcs
BULC-300-DSN-B
Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 300mm; Length 78mm; Pressure range 0…10bar; Nominal flange pressure PN10
GB02-10/22-02
GB02-10/22-02 x 1.0 Pcs
GB02-10/22-02
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F10; Female square 22mm
