BULC-200-DSV-S22

Name: BULC-200-DSV-S22
Brand: STASTO
SKU: BULC-200-DSV-S22
Price: 15831.2 PLN
Availability: InStock

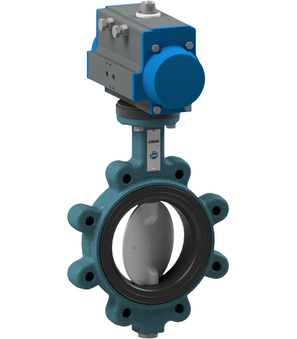

Butterfly valve with pneumatic actuator; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Nominal flange pressure 10bar; Disc 1.4408; Actuator PAS2005

Intrastat No.: 84818085
Country of origin: Italy
Weight: 91.9 Kg
Short Itemnumber: BULC200DSVS22

butterfly valve with pneumatic actuator; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 200mm; length 60mm; nominal flange pressure 10bar; disc AISI 316; actuator PAS2005

15.831,20 zł 15831.2 PLN 15.831,20 zł

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BULC-200-DSV-B x 1.0

Butterfly valve with bare shaft BULC-200-DSV-B

Butterfly valve with bare shaft Series BUL-DSV-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 200mm; Length 60mm; Pressure range 0...10bar; Nominal flange pressure 10

Add to Cart

PAS2005 x 1.0

Pneumatic actuator PAS2005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm

Add to Cart

APKT001000 x 1.0
