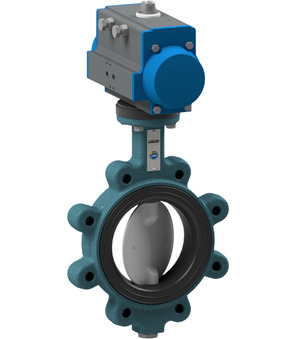

Butterfly valve with pneumatic actuator BULC-200-DPE-S22

Butterfly valve with pneumatic actuator BULC-200-DPE-S22

Butterfly valve with pneumatic actuator Series BULG-S, BULC-S; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Flange PN10; Disc GGG40 verzinkt; Actuator PAS2005

Absperrklappe mit Druckluftdrehantrieb Serie BULG-S, BULC-S
Absperrklappe mit Druckluftdrehantrieb Serie BULG-S, BULC-S
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 84.9 Kg
Short Itemnumber: BULC200DPES22
https://www.stasto.pl/web/image/product.template/88029/image_1920?unique=fcc32fd

Butterfly valve with pneumatic actuator Series BULG-S, BULC-S; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Flange PN10; Disc GGG40 verzinkt; Actuator PAS2005

12.937,30 zł 12937.3 PLN 12.937,30 zł

cena na zapytanie

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Disc
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 200 mm
Length 60 mm
Flange PN10
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 200 mm
Length 60 mm
Flange PN10
Disc GGG40 Zinc plated
Brand STASTO

BULC-200-DPE-S22

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1
Swedish / Svenska
ZIP

Data Sheets

1
BULC-200-DPE-B x 1.0 Pcs
Butterfly valve with bare shaft BULC-200-DPE-B
Butterfly valve with bare shaft Series BUL1-DPE-B, BULA-DPE-B, BULG-DPE-B, BULC-DPE-B, BULU-DPE-B, BULY-DPE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Nominal flange pressure PN10; Disc GGG40 verzinkt
Pneumatic actuator PAS2005
PAS2005 x 1.0 Pcs
Pneumatic actuator PAS2005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm
APKT001000 x 1.0 Pcs
APKT001000
Mounting bracket For butterfly valve; DN200; F14/F12-F14/F10-17-36
