Butterfly valve with pneumatic actuator Series BULI-S, BULB-S Store

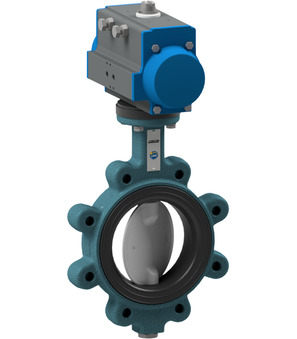

Butterfly valve with pneumatic actuator BULB-250-DSC-S32

Name: Butterfly valve with pneumatic actuator BULB-250-DSC-S32
Brand: STASTO
SKU: BULB-250-DSC-S32
Price: 11584.8 PLN
Availability: InStock

Butterfly valve with pneumatic actuator Series BULI-S, BULB-S; Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 250mm; Length 68mm; Flange PN10; Actuator PAS1605

Intrastat No.: 84818085
Country of origin: Italy
Weight: 64.1 Kg
Short Itemnumber: BULB250DSCS32

butterfly valve with pneumatic actuator series BULI-S, BULB-S; lug type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 250mm; length 68mm; flange PN10; actuator PAS1605

11.584,80 zł 11584.8 PLN 11.584,80 zł

DN
- 250 mm
Length
- 68 mm
Flange
- PN10
Actuator
- PAS1605

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	250 mm
Length	68 mm
Flange	PN10
characteristics
Actuator	PAS1605

BULB-250-DSC-B x 1.0

BULB-250-DSC-B

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 250mm; Length 68mm

Add to Cart

PAS1605 x 1.0

Pneumatic actuator PAS1605

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart

APKTGB0052 x 1.0
