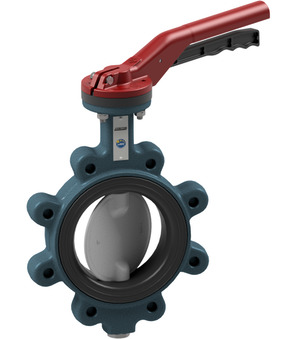

BULB-250-DSC-L

BULB-250-DSC-L

Butterfly valve with hand lever; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Medium temperature -10...+100°C; DN 250mm; Length 68mm; Pressure range 0-6bar; Flange PN10

Intrastat No.: 84818085
Country of origin: Italy
Weight: 34.71 Kg
Short Itemnumber: BULB250DSCL
https://www.stasto.pl/web/image/product.template/157106/image_1920?unique=d9024cc

butterfly valve with hand lever; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; medium temperature -10...+100°C; DN 250mm; length 68mm; pressure range 0-6bar; flange PN10

5.031,00 zł 5031.0 PLN 5.031,00 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULB-250-DSC-B x 1.0
    BULB-250-DSC-B
    Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 250mm; Length 68mm
    Add to Cart
    HLBU-250300-A
    HLBU-250300-A x 1.0
    HLBU-250300-A
    Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 250;300mm
