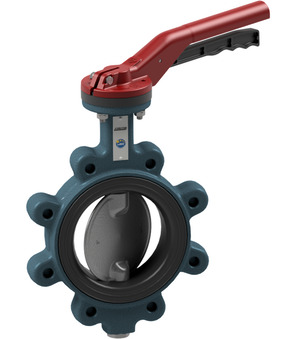

Butterfly valve with hand lever BULA-250-DPE-L-A

Butterfly valve with hand lever BULA-250-DPE-L-A

butterfly valve with hand lever series BULA-DPE-L; lug type; ATEX - II 2GD Ex h X EPT; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 250mm; length 68mm; pressure range 0...16bar; nominal flange pressure PN16

Absperrklappe mit Handhebel Serie BULG-L, BULC-L
Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULA250DPELA

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.pl/web/image/product.template/231591/image_1920?unique=37ad42f

butterfly valve with hand lever series BULA-DPE-L; lug type; ATEX - II 2GD Ex h X EPT; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 250mm; length 68mm; pressure range 0...16bar; nominal flange pressure PN16

3.077,80 zł 3077.8 PLN 3.077,80 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Flange
  • Design
  • Pressure range
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 250 mm
Length 68 mm
Flange PN16
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 250 mm
Length 68 mm
Flange PN16
Design ATEX
Brand STASTO

BULA-250-DPE-L-A

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Swedish / Svenska
ZIP

Data Sheets

1
BULA-250-DPE-B-A x 1.0 Pcs
Butterfly valve with bare shaft BULA-250-DPE-B-A
butterfly valve with bare shaft series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; lug type; ATEX - II 2GD Ex h X EPT; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 250mm; length 68mm; pressure range 0...16bar; nominal flange pressure PN16
HLBU-250300-A
HLBU-250300-A x 1.0 Pcs
HLBU-250300-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 250;300mm
