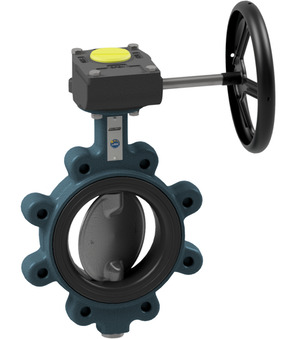

Butterfly valve with manual gear box BULA-200-DSE-G

Butterfly valve with manual gear box BULA-200-DSE-G

Butterfly valve with manual gear box Series BUL1-G, BULA-G; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 200mm; Pressure range 0…16bar; Nominal flange pressure PN16bar

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 31.728 Kg
Short Itemnumber: BULA200DSEG

Scope of delivery

butterfly valve with gear box
https://www.stasto.pl/web/image/product.template/151298/image_1920?unique=fcc32fd

butterfly valve with manual gear box series BUL1-G, BULA-G; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 200mm; length 200mm; pressure range 0…16bar; nominal flange pressure PN16bar

3.747,90 zł 3747.9 PLN 3.747,90 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Flange
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 200 mm
Length 200 mm
Flange PN16
Pressure range 0...16 bar
DN 200 mm
Length 200 mm
Flange PN16
BULA-200-DSE-B x 1.0 Pcs
Butterfly valve with bare shaft BULA-200-DSE-B
Butterfly valve with bare shaft Series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0...16bar; Nominal flange pressure PN16
GB02-10/17-01
GB02-10/17-01 x 1.0 Pcs
GB02-10/17-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 500Nm; Flange ISO5211 F10; Female square 17mm
