BUL1A-080-DSE-L
C-EW42LR11/2ED
C-EW42LR11/2ED
cena na zapytanie
BUL1A-080-DSE-L-3C
BUL1A-080-DSE-L-3C
cena na zapytanie

BUL1A-080-DSE-L

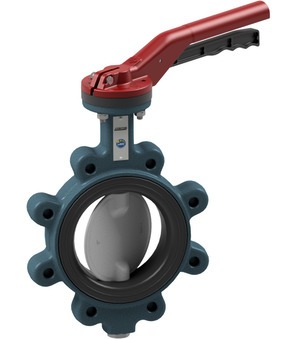

Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0...20bar; Nominal flange pressure ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.45 Kg
Short Itemnumber:BUL1A080DSEL
https://www.stasto.pl/web/image/product.template/158394/image_1920?unique=fd7dadc

butterfly valve with hand lever; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 80mm; length 46mm; pressure range 0...20bar; nominal flange pressure ANSI150

999.999,00 zł 999999.0 PLN 999.999,00 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    No spare parts are available for this product.
