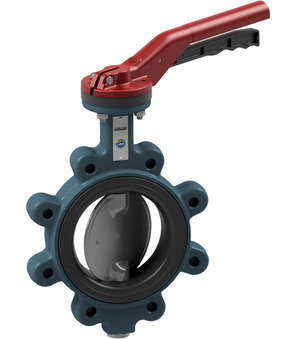

Butterfly valve with hand lever BUL1-100-DSE-L

Butterfly valve with hand lever BUL1-100-DSE-L

Butterfly valve with hand lever Series BUL1-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN6; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 100mm; Length 52mm

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 0.61 Kg
Short Itemnumber: BUL1100DSEL

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.pl/web/image/product.template/132504/image_1920?unique=c7dc714

butterfly valve with hand lever series BUL1-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN6; medium temperature -10...+130°C; pressure range 0...6bar; DN 100mm; length 52mm

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...6bar
DN 100 mm
Length 52 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...6bar
DN 100 mm
Length 52 mm

BUL1-100-DSE-L

Documents

1 Documents 2 Languages

German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
No spare parts are available for this product.
