Flanged ball valve with pneumatic actuator BAUA-100-CITV-D0

Price:

11.297,90 zł
Flanged ball valve with pneumatic actuator Series BAMA, BAUA Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - pneumatically operated
  5. Flanged ball valve with pneumatic actuator Series BAMA, BAUA
  6. BAUA-100-CITV-D0

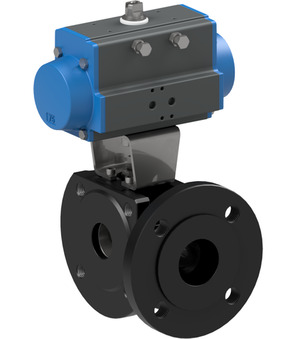

Flanged ball valve with pneumatic actuator BAUA-100-CITV-D0
BAMA-080-CITV-D0-ABS51-C001-03-C002-31-LVCV20-2
BAMA-080-CITV-D0-ABS51-C001-03-C002-31-LVCV20-2
9.083,80 zł
9.083,80 zł
BAUA-100-CITV-D0-ABS51-C001-22-C002-31-6
BAUA-100-CITV-D0-ABS51-C001-22-C002-31-6
11.945,10 zł
11.945,10 zł

Flanged ball valve with pneumatic actuator BAUA-100-CITV-D0

Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar; Nominal diameter 100mm; DN ball 76mm; Length 152mm; Actuator PAD100; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.83 Kg
Short Itemnumber:BAUA100CITVD0
https://www.stasto.pl/web/image/product.template/87281/image_1920?unique=e5e4a60

Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar; Nominal diameter 100mm; DN ball 76mm; Length 152mm; Actuator PAD100; Ball T

11.297,90 zł 11297.9 PLN 11.297,90 zł

cena na zapytanie

  • Valve interface Namur
  • DN
  • Length
  • DN ball
  • Connector size
  • Ball
  • Design
  • Voltage
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 100 mm
Length 152 mm
DN ball 76 mm
Designs
Ball T
characteristics
Actuator PAD100

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with pneumatic actuator Series BAMA, BAUA_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAUA100CITVD0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s otočným pneumatickým pohonem série BAMA, BAUA_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Flangekugleventil med pneumatisk drejedrev Serie BAMA, BAUA_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Φλαντζωτή σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BAMA, BAUA_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con bridas con actuador neumático rotativo Serie BAMA, BAUA_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Laippakuulaventtiili paineilmatoimisella kääntötoimilaitteella Sarja BAMA, BAUA_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique à brides avec actionneur pneumatique rotatif Série BAMA, BAUA_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Prirubnički kuglasti ventil s pneumatskim rotacijskim pogonom Serija BAMA, BAUA_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BAMA, BAUA_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera flangiata con attuatore pneumatico rotativo Serie BAMA, BAUA_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Flenset kuleventil med pneumatisk dreieaktuator Serie BAMA, BAUA_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Flenskogelkraan met pneumatische draaiaandrijving Serie BAMA, BAUA_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BAMA, BAUA_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu flanșă cu actuator rotativ pneumatic serie BAMA, BAUA_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BAMA, BAUA_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BAMA, BAUA_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Flänskulventil med pneumatiskt vriddon Serie BAMA, BAUA_SV.pdf
Download
Flanged ball valve 776001-100
776001-100 x 1.0
Flanged ball valve 776001-100
Flanged ball valve Series 776000, 776001; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 100mm; DN ball 76mm; Length 152mm; Ball T
Add to Cart
Pneumatic actuator PAD100
PAD100 x 1.0
Pneumatic actuator PAD100
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm
Add to Cart
