BAUA-015-SSTV-D0B-ABS51-C001-03-C002-31-6

Price:

4.624,80 zł
Flanged ball valve with pneumatic actuator Series BAMA, BAUA Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - pneumatically operated
  5. Flanged ball valve with pneumatic actuator Series BAMA, BAUA
  6. BAUA-015-SSTV-D0B-ABS51-C001-03-C002-31-6

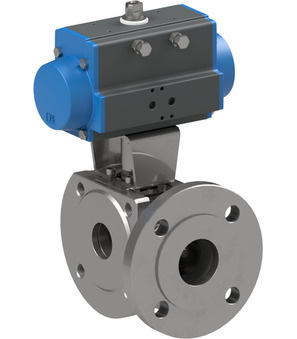

BAUA-015-SSTV-D0B-ABS51-C001-03-C002-31-6
Flanged ball valve with pneumatic actuator BAUA-015-SSTV-D0B
Flanged ball valve with pneumatic actuator BAUA-015-SSTV-D0B
3.977,60 zł
3.977,60 zł
BAUA-015-SSTV-D0B-ABS51-C001-03-C002-31-LV-2
BAUA-015-SSTV-D0B-ABS51-C001-03-C002-31-LV-2
4.648,60 zł
4.648,60 zł

BAUA-015-SSTV-D0B-ABS51-C001-03-C002-31-6

BAUA-015-SSTV-D0B
Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 15mm; DN ball 10mm; Length 40mm; Actuator PAD052; Ball T
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.963 Kg
Short Itemnumber:BAUA015SSTVD0BABS51C00103C002316
https://www.stasto.pl/web/image/product.template/202245/image_1920?unique=d9024cc

BAUA-015-SSTV-D0B
flanged ball valve with pneumatic actuator series BAMA, BAUA; 3-way-type; sealing on two sides; pressure inlet just in front; flange PN16; body, ball AISI 316; seals PTFE/FKM; reduced bore; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 15mm; DN ball 10mm; length 40mm; actuator PAD052; ball T
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

4.624,80 zł 4624.8 PLN 4.624,80 zł

cena na zapytanie

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • DN ball
  • Connector size
  • Ball
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Valve interface Namur 1/4"
DN 15 mm
Length 40 mm
DN ball 10 mm
Designs
Connector size 22
Ball T
design
Design Standard
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
characteristics
Coil C001
Actuator PAD052
