BAMA-025-SSTV-D0-EB0X01

Price:

4.901,20 zł
List prices PL
Flanged ball valve with pneumatic actuator Series BAMA, BAUA Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - pneumatically operated
  5. Flanged ball valve with pneumatic actuator Series BAMA, BAUA
  6. BAMA-025-SSTV-D0-EB0X01

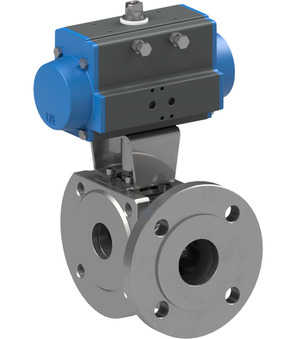

BAMA-025-SSTV-D0-EB0X01

BAMA-025-SSTV-D0-EB0X01

BAMA-025-SSTV-D0
flanged ball valve with pneumatic actuator series BAMA, BAUA; 3-way-type; sealing on two sides; pressure inlet just in front; flange PN16; body, ball AISI 316; seals PTFE/FKM; reduced bore; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 25mm; DN ball 20mm; length 46mm; actuator PAD052; ball L
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.958 Kg
Short Itemnumber:BAMA025SSTVD0EB0X01
https://www.stasto.pl/web/image/product.template/232779/image_1920?unique=d9024cc

BAMA-025-SSTV-D0
flanged ball valve with pneumatic actuator series BAMA, BAUA; 3-way-type; sealing on two sides; pressure inlet just in front; flange PN16; body, ball AISI 316; seals PTFE/FKM; reduced bore; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 25mm; DN ball 20mm; length 46mm; actuator PAD052; ball L
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

4.901,20 zł 4901.2 PLN 4.901,20 zł

cena na zapytanie

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • DN ball
  • Connector size
  • Ball
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
DN 25 mm
Length 46 mm
DN ball 20 mm
Designs
Ball L
Switch type Crouzet 831613
Electrical key figures
Switching capacity 4A/250VAC-1A/24VDC
materials
Contact material Silver-nickel
Material of case Plastic
characteristics
Actuator PAD052
