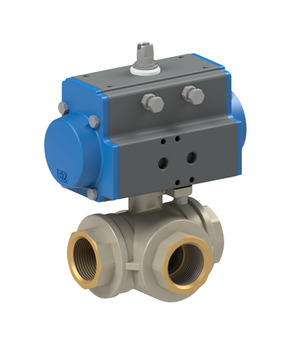

Ball valve with pneumatic actuator BAL1-009-BLTV-S0

Ball valve with pneumatic actuator BAL1-009-BLTV-S0

Ball valve with pneumatic actuator Series BAL1, BAT1; 3-way-type; Sealing on three ports; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-10bar; Length 166mm; Actuator PAS0855; Ball L

Kugelhahn mit Druckluftdrehantrieb Serie BAL1, BAT1
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 16.01 Kg
Short Itemnumber: BAL1009BLTVS0
https://www.stasto.pl/web/image/product.template/87079/image_1920?unique=d975ddd

Ball valve with pneumatic actuator Series BAL1, BAT1; 3-way-type; Sealing on three ports; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-10bar; Length 166mm; Actuator PAS0855; Ball L

6.388,80 zł 6388.8 PLN 6.388,80 zł

cena na zapytanie

excl. tax
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Ball
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
Female thread RP 2"
DN 50 mm
Length 166 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
Female thread RP 2"
DN 50 mm
Length 166 mm
Ball L

BAL1-009-BLTV-S0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of brass 3600-2"
3600-2" x 1.0 Pcs
Ball valve made of brass 3600-2"
Ball valve made of brass Series 3600, 3500; 3-way-type; Sealing on three ports; Female thread; Seals PTFE/FKM/EPDM; Medium temperature -20...+160°C; Hand lever Steel; RP 2"; Nominal diameter 50mm; Pressure range 0-10bar; Length 166mm; Ball L
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
