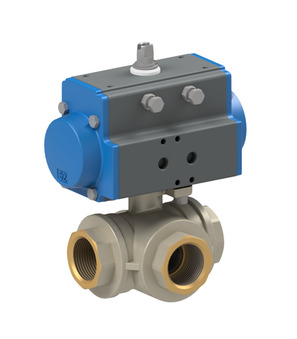

Ball valve with pneumatic actuator BAL1-007-BLTV-S0

Ball valve with pneumatic actuator BAL1-007-BLTV-S0

Ball valve with pneumatic actuator Series BAL1, BAT1; 3-way-type; Sealing on three ports; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-10bar; Length 122,5mm; Actuator PAS0635; Ball L

Kugelhahn mit Druckluftdrehantrieb Serie BAL1, BAT1
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 4.99 Kg
Short Itemnumber: BAL1007BLTVS0
https://www.stasto.pl/web/image/product.template/87070/image_1920?unique=d975ddd

Ball valve with pneumatic actuator Series BAL1, BAT1; 3-way-type; Sealing on three ports; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-10bar; Length 122,5mm; Actuator PAS0635; Ball L

2.712,60 zł 2712.6 PLN 2.712,60 zł

cena na zapytanie

excl. tax
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Ball
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
Female thread RP 1 1/4"
DN 32 mm
Length 122,5 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
Female thread RP 1 1/4"
DN 32 mm
Length 122,5 mm
Ball L

BAL1-007-BLTV-S0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of brass 3600-11/4"
3600-11/4" x 1.0 Pcs
Ball valve made of brass 3600-11/4"
Ball valve made of brass Series 3600, 3500; 3-way-type; Sealing on three ports; Female thread; Seals PTFE/FKM/EPDM; Medium temperature -20...+160°C; Hand lever Steel; RP 11/4"; Nominal diameter 32mm; Pressure range 0-10bar; Length 122,5mm; Ball L
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
