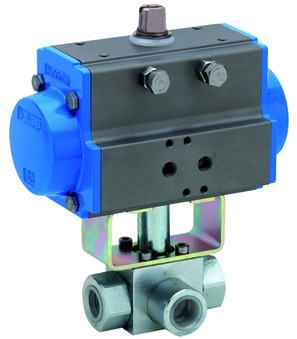

Ball valve with pneumatic actuator BAI1-005-UCPN-D0

Ball valve with pneumatic actuator BAI1-005-UCPN-D0

Ball valve with pneumatic actuator Series BAI1; Female thread 3-way-type; Sealing on two sides; Pressure inlet just in front; Body, Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...350bar; G 3/4"; Nominal diameter 18mm; Length 96mm; Actuator PAD063; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.73 Kg
Short Itemnumber:BAI1005UCPND0
https://www.stasto.pl/web/image/product.template/87025/image_1920?unique=0e8018d

Ball valve with pneumatic actuator Series BAI1; Female thread 3-way-type; Sealing on two sides; Pressure inlet just in front; Body, Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...350bar; G 3/4"; Nominal diameter 18mm; Length 96mm; Actuator PAD063; Ball L

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Female thread
  • DN
  • Length
  • Actuator
  • Ball

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/4"
DN 18 mm
Length 96 mm
characteristics
Actuator PAD063
Others
Ball L

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
CAD / 3D
1
CADSTEP_BAI1005UCPND0.stp
Download
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/337/99 x 1.0
A4/337/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 46mm; Male square 14mm; Height of the male square 17mm; Female square 14mm; Height of the female square 13mm
