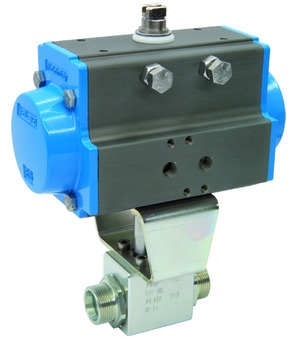

Ball valve with pneumatic actuator BAH7-25S-UCPN-S0

Ball valve with pneumatic actuator BAH7-25S-UCPN-S0

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 25S/M36x2; Nominal diameter 20mm; Pressure range 0-400bar; Length 110mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 9.24 Kg
Short Itemnumber: BAH725SUCPNS0
https://www.stasto.pl/web/image/product.template/87949/image_1920?unique=bcfc56d

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 25S/M36x2; Nominal diameter 20mm; Pressure range 0-400bar; Length 110mm; Actuator PAS1005

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Connection
  • Connection
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 25S/M36x2
Pressure range 0...400 bar
Connection 25S/M36x2
DN 20 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Connection 25S/M36x2
Pressure range 0...400 bar
Connection 25S/M36x2
DN 20 mm
Length 110 mm
Brand STASTO

BAH7-25S-UCPN-S0

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
BKH-25S-20 11231-B0FA x 1.0 Pcs
BKH-25S-20 11231-B0FA
High pressure ball valve; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -10...+100°C; Connection 25S/M36x2; Nominal diameter 20mm; Pressure range 0-400bar; Length 110mm; Drilled for mounting an actuator F04
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
ATSV0704 x 1.0 Pcs
ATSV0704
Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F04; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
