Ball valve with pneumatic actuator BAH7-22L-UCPN-D0
Ball valve with pneumatic actuator BAH7-20S-UCPN-D0
Ball valve with pneumatic actuator BAH7-20S-UCPN-D0
cena na zapytanie
Ball valve with pneumatic actuator BAH7-25S-UCPN-D0
Ball valve with pneumatic actuator BAH7-25S-UCPN-D0
cena na zapytanie

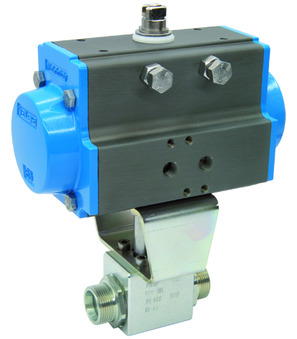

Ball valve with pneumatic actuator BAH7-22L-UCPN-D0

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 22L/M30x2; Nominal diameter 20mm; Pressure range 0-400bar; Length 102mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.53 Kg
Short Itemnumber:BAH722LUCPND0
https://www.stasto.pl/web/image/product.template/87944/image_1920?unique=0e8018d

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 22L/M30x2; Nominal diameter 20mm; Pressure range 0-400bar; Length 102mm; Actuator PAD063

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Connection
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Connection 22L/M30x2
DN 20 mm
Length 102 mm
pressure
Pressure range 0...400 bar
characteristics
Actuator PAD063

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BAH7-D0_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAH722LUCPND0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BAH7-D0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BAH7-D0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAH7-D0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BAH7-D0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BAH7-D0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BAH7-D0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BAH7-D0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BAH7-D0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAH7-D0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BAH7-D0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BAH7-D0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BAH7-D0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAH7-D0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BAH7-D0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAH7-D0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAH7-D0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BAH7-D0_SV.pdf
Download
BKH-22L-20 11231-B0FA x 1.0
BKH-22L-20 11231-B0FA
Hochdruckkugelhahn ; Außengewinde gemäß ISO 8434-1 (DIN 2353); Gehäuse Stahl verzinkt; Kugel Stahl; Dichtungen POM/NBR; Mediumstemperatur -10...+100°C; Anschluss 22L/M30x2; Nennweite 20mm; Druckbereich 0-400bar; Einbaulänge 102mm; gebohrt für Antriebsaufbau F04
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/337/99 x 1.0
A4/337/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 46mm; Male square 14mm; Height of the male square 17mm; Female square 14mm; Height of the female square 13mm
