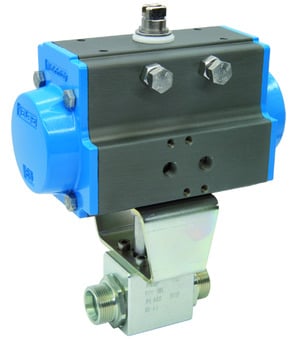

Ball valve with pneumatic actuator BAH7-20S-UCPN-S0

Ball valve with pneumatic actuator BAH7-20S-UCPN-S0

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 20S/M30x2; Nominal diameter 15mm; Pressure range 0-500bar; Length 90mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.95 Kg
Short Itemnumber: BAH720SUCPNS0
https://www.stasto.pl/web/image/product.template/87942/image_1920?unique=f96ddcc

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 20S/M30x2; Nominal diameter 15mm; Pressure range 0-500bar; Length 90mm; Actuator PAS0855

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Connection
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Connection 20S/M30X2
DN 15 mm
Length 90 mm
pressure
Pressure range 0...500 bar
characteristics
Actuator PAS0855

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BAH7_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAH720SUCPNS0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BAH7_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAH7_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAH7_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAH7_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAH7_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAH7_SRLATIN.pdf
Download
BKH-20S-16 11231-B0FA x 1.0
BKH-20S-16 11231-B0FA
Ball valve, PN 500, tube 20S/M30x2 body steel zinc-plated, seal POM/NBR ISO holes for actuator mounting F03
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
04805007001 x 1.0
04805007001
Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm
Add to Cart
A4/459/04 x 1.0
A4/459/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 48mm; Male square 14mm; Height of the male square 15mm; Female square 12mm; Height of the female square 12mm
