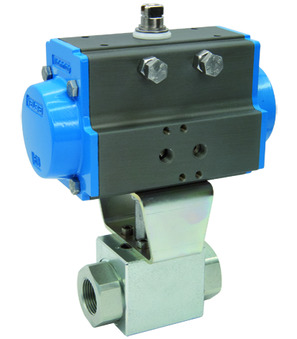

Ball valve with pneumatic actuator BAH1-006-UCPN-S0
Ball valve with pneumatic actuator BAH1-005-UCPN-S0
Ball valve with pneumatic actuator BAH1-005-UCPN-S0
2.692,40 zł
2.692,40 zł
Ball valve with pneumatic actuator BAH7-15L-UCPN-D0
Ball valve with pneumatic actuator BAH7-15L-UCPN-D0
cena na zapytanie

Ball valve with pneumatic actuator BAH1-006-UCPN-S0

Ball valve with pneumatic actuator Series BAH1; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 1"; Nominal diameter 24mm; Pressure range 0-350bar; Length 113mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.3 Kg
Short Itemnumber:BAH1006UCPNS0
https://www.stasto.pl/web/image/product.template/87927/image_1920?unique=bbc91d7

Ball valve with pneumatic actuator Series BAH1; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 1"; Nominal diameter 24mm; Pressure range 0-350bar; Length 113mm; Actuator PAS1005

2.708,20 zł 2708.2 PLN 2.708,20 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1"
DN 24 mm
Length 113 mm
pressure
Pressure range 0...350 bar
characteristics
Actuator PAS1005

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BAH1_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAH1006UCPNS0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BAH1_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAH1_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAH1_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAH1_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAH1_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAH1_SRLATIN.pdf
Download
BKH-G1-25 11231-B0FA x 1.0
BKH-G1-25 11231-B0FA
High pressure ball valve; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -10...+100°C; G 1"; Nominal diameter 24mm; Pressure range 0-350bar; Length 113mm; Drilled for mounting an actuator F05
Add to Cart
Pneumatic actuator PAS1005
PAS1005 x 1.0
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
