  6. BAH1-006-SSKV-T0

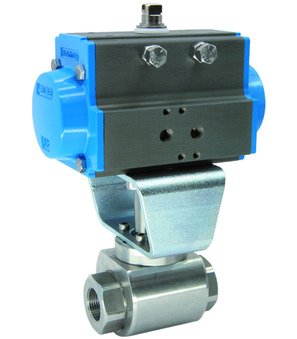

BAH1-006-SSKV-T0

BAH1-006-SSKV-T0

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For hydraulic liquids; G 1"; Nominal diameter 24mm; Pressure range 0-400bar; Length 113mm; Actuator PAS1005; Safety position NO

Intrastat No.: 84818081
Country of origin: Germany
Weight: 10.06 Kg
Short Itemnumber: BAH1006SSKVT0
https://www.stasto.pl/web/image/product.template/160938/image_1920?unique=6fca8dd

ball valve with pneumatic actuator; female thread; body, ball AISI 316Ti; seals PEEK/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; for hydraulic liquids; G 1"; nominal diameter 24mm; pressure range 0-400bar; length 113mm; actuator PAS1005; safety position NO

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    RKH-G1-254465-DFA x 1.0
    RKH-G1-254465-DFA
    Ball valve with cover for actuator F04-SW14 PN 400, thread i/i, 1", DN25, body 1.4571 seal PEEK/FKM, for hydraulic fluids
    Add to Cart
    Pneumatic actuator PAS1005
    PAS1005 x 1.0
    Pneumatic actuator PAS1005
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
    Add to Cart
    ATSV0704 x 1.0
    ATSV0704
    Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F04; Height 60mm
    Add to Cart
    A4/338/99 x 1.0
    A4/338/99
    Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
