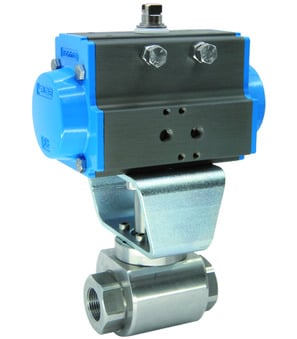

Ball valve with pneumatic actuator BAH1-005-SSKV-D0

Ball valve with pneumatic actuator BAH1-005-SSKV-D0

Ball valve with pneumatic actuator Series BAH1; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For hydraulic liquids; G 3/4"; Nominal diameter 20mm; Pressure range 0-400bar; Length 96mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Germany Made in Europe
Weight: 4.24 Kg
Short Itemnumber: BAH1005SSKVD0
https://www.stasto.pl/web/image/product.template/87916/image_1920?unique=fcc32fd

Ball valve with pneumatic actuator Series BAH1; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For hydraulic liquids; G 3/4"; Nominal diameter 20mm; Pressure range 0-400bar; Length 96mm; Actuator PAD063

4.579,50 zł 4579.5 PLN 4.579,50 zł

cena na zapytanie

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...400 bar
Female thread G 3/4"
DN 20 mm
Length 96 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...400 bar
Female thread G 3/4"
DN 20 mm
Length 96 mm
Brand STASTO

BAH1-005-SSKV-D0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
RKH-G3/4-204465-DFA x 1.0 Pcs
RKH-G3/4-204465-DFA
Ball valve with cover for actuator F04-SW14 PN 400, thread i/i, 3/4", DN20, body 1.4571 seal PEEK/FKM, for hydraulic fluids
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
ATSV0704 x 1.0 Pcs
ATSV0704
Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F04; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
