BAEB-032-UITV-D0-ABS51-C001-03-C002-31-LVCV20-2

Price:

3.614,20 zł
Flanged ball valve with pneumatic actuator Series BAEB, BAEA Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - pneumatically operated
  5. Flanged ball valve with pneumatic actuator Series BAEB, BAEA
  6. BAEB-032-UITV-D0-ABS51-C001-03-C002-31-LVCV20-2

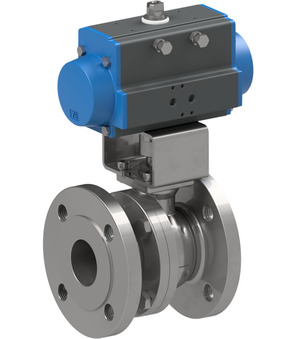

BAEB-032-UITV-D0-ABS51-C001-03-C002-31-LVCV20-2
Flanged ball valve with pneumatic actuator BA040-065-D0
Flanged ball valve with pneumatic actuator BA040-065-D0
3.586,00 zł
3.586,00 zł
BA040-065-D0-ABS51-C001-22-C002-31-LV-1
BA040-065-D0-ABS51-C001-22-C002-31-LV-1
4.256,60 zł
4.256,60 zł

BAEB-032-UITV-D0-ABS51-C001-03-C002-31-LVCV20-2

BAEB-032-UITV-D0
Flanged ball valve with pneumatic actuator Series BAEB, BAEA; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 32mm; Pressure range 0-40bar; Flange PN40; Length 130mm; Actuator PAD052
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
Connector; Connector size 22mm; mit eingebauter LED-gelb, VDR und PVC-Kabel (2 m); Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.83 Kg
Short Itemnumber:BAEB032UITVD0ABS51C00103C00231LVCV202
https://www.stasto.pl/web/image/product.template/198663/image_1920?unique=d9024cc

BAEB-032-UITV-D0
flanged ball valve with pneumatic actuator series BAEB, BAEA; fire-safe; TA-Luft; length according to EN558−1R27; body zinc plated steel; ball AISI 304; seals PTFE/Graphoil/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; nominal diameter 32mm; pressure range 0-40bar; flange PN40; length 130mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
connector; connector size 22mm; mit eingebauter LED-gelb, VDR und PVC-Kabel (2 m); voltage 24VAC/DC

3.614,20 zł 3614.2 PLN 3.614,20 zł

cena na zapytanie

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Valve interface Namur 1/4"
DN 32 mm
Length 130 mm
Flange PN40
Designs
Connector size 22
design
Design With integrated LED-yellow, VDR and PVC-cable (2 m)
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
pressure
Pressure range 0...40 bar
characteristics
Coil C001
Actuator PAD052
