BAEA-080-SSTV-D0-ABS54-C001-03-C002-31-6-EB0X13

BAEA-080-SSTV-D0-ABS54-C001-03-C002-31-6-EB0X13

BAEA-080-SSTV-D0

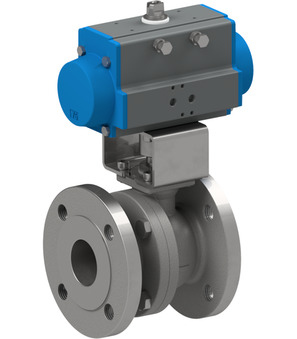

flanged ball valve with pneumatic actuator series BAEB, BAEA; fire-safe; TA-Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; pressure range 0-16bar; flange PN16; length 180mm; actuator PAD085
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X13
mounted limit switch box; IP65; inductive dual proximity switch, suitable for actuators PAD/PAS052-270; switching capacity 10-30VDC/200mA; switch type P&F NBN3-F25F-E8P; function NO contact PNP; material of case plastic

Flanschkugelhahn mit Druckluftdrehantrieb Serie BAEB, BAEA
Flanschkugelhahn mit Druckluftdrehantrieb Serie BAEB, BAEA
Flanschkugelhahn mit Druckluftdrehantrieb Serie BAEB, BAEA
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 26.748 Kg
Short Itemnumber: BAEA080SSTVD0ABS54C00103C002316EB0X13
https://www.stasto.pl/web/image/product.template/224814/image_1920?unique=e37ba3e

BAEA-080-SSTV-D0
flanged ball valve with pneumatic actuator series BAEB, BAEA; fire-safe; TA-Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; pressure range 0-16bar; flange PN16; length 180mm; actuator PAD085
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X13
mounted limit switch box; IP65; inductive dual proximity switch, suitable for actuators PAD/PAS052-270; switching capacity 10-30VDC/200mA; switch type P&F NBN3-F25F-E8P; function NO contact PNP; material of case plastic

10.872,00 zł 10872.0 PLN 10.872,00 zł

cena na zapytanie

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 80 mm
Length 180 mm
Flange PN16
All specifications (9)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 80 mm
Length 180 mm
Flange PN16
Voltage 24VDC / 48V/50-60Hz
Design Standard
Switch type P&F NBN3-F25F-E8
Function NO PNP
Material of case Plastic

BAEA-080-SSTV-D0-ABS54-C001-03-C002-31-6-EB0X13

Documents

12 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

5

Declarations of Conformity

3

CAD / 3D

4
Danish / Dansk
ZIP

Data Sheets

4

CAD / 3D

4
German / Deutsch
ZIP

Data Sheets

5

Declarations of Conformity

3

CAD / 3D

4
Greek / Ελληνικά
ZIP

Data Sheets

4

CAD / 3D

4
English
ZIP

Data Sheets

5

Declarations of Conformity

3

CAD / 3D

4
Spanish / Español
ZIP

Data Sheets

4

CAD / 3D

4
Finnish / Suomi
ZIP

Data Sheets

4

CAD / 3D

4
French / Français
ZIP

Data Sheets

4

CAD / 3D

4
Croatian / hrvatski jezik
ZIP

Data Sheets

4

CAD / 3D

4
Hungarian / Magyar
ZIP

Data Sheets

5

Declarations of Conformity

3

CAD / 3D

4
Italian / Italiano
ZIP

Data Sheets

4

CAD / 3D

4
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

4

CAD / 3D

4
Dutch / Nederlands
ZIP

Data Sheets

4

CAD / 3D

4
Polish / Język polski
ZIP

Data Sheets

5

Declarations of Conformity

3

CAD / 3D

4
Romanian / română
ZIP

Data Sheets

4

CAD / 3D

4
Slovenian / slovenščina
ZIP

Data Sheets

5

Declarations of Conformity

3

CAD / 3D

4
Serbian (Latin) / srpski
ZIP

Data Sheets

5

Declarations of Conformity

3

CAD / 3D

4
Swedish / Svenska
ZIP

Data Sheets

4

CAD / 3D

4
Flanged ball valve with pneumatic actuator BAEA-080-SSTV-D0
BAEA-080-SSTV-D0 x 1.0 Pcs
Flanged ball valve with pneumatic actuator BAEA-080-SSTV-D0
Flanged ball valve with pneumatic actuator Series BAEB, BAEA; Fire-safe; TA-Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Pressure range 0-16bar; Flange PN16; Length 180mm; Actuator PAD085
Mounted pilot valve ABS54
ABS54 x 1.0 Pcs
Mounted pilot valve ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
C001-03 x 1.0 Pcs
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
C002-31-6 x 1.0 Pcs
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X13
EB0X13 x 1.0 Pcs
EB0X13
Mounted limit switch box; IP65; Inductive dual proximity switch, Suitable for Actuators PAD/PAS052-270; Switching capacity 10-30VDC/200mA; Switch type P&F NBN3-F25F-E8P; Function NO contact PNP; Material of case Plastic
